SSCG30-3000/10000 30kW High Accuracy Modular Design Electric Dynamometer Test Bench System for Testing Engine Performance
SSCG30-3000/10000 30kW High Accuracy Modular Design Electric Dynamometer Test Bench System for Testing Engine Performance
SSCG30-3000/10000 30kW High Accuracy Modular Design Electric Dynamometer Test Bench System for Testing Engine Performance
SSCG30-3000/10000 30kW High Accuracy Modular Design Electric Dynamometer Test Bench System for Testing Engine Performance
SSCG30-3000/10000 30kW High Accuracy Modular Design Electric Dynamometer Test Bench System for Testing Engine Performance
SSCG30-3000/10000 30kW High Accuracy Modular Design Electric Dynamometer Test Bench System for Testing Engine Performance
SSCG30-3000/10000 30kW High Accuracy Modular Design Electric Dynamometer Test Bench System for Testing Engine Performance
SSCG30-3000/10000 30kW High Accuracy Modular Design Electric Dynamometer Test Bench System for Testing Engine Performance
SSCG30-3000/10000 30kW High Accuracy Modular Design Electric Dynamometer Test Bench System for Testing Engine Performance
SSCG30-3000/10000 30kW High Accuracy Modular Design Electric Dynamometer Test Bench System for Testing Engine Performance
SSCG30-3000/10000 30kW High Accuracy Modular Design Electric Dynamometer Test Bench System for Testing Engine Performance
SSCG30-3000/10000 30kW High Accuracy Modular Design Electric Dynamometer Test Bench System for Testing Engine Performance
Specifications
Brand Name :
Seelong
Model Number :
SSCG30-3000/10000
Certification :
CMC, CE, ISO 9001
Place of Origin :
China
MOQ :
1
Price :
Negociated
Payment Terms :
T/T
Supply Ability :
5 sets per month
Delivery Time :
6-8 working weeks
Packaging Details :
Seaworthy Plywood
Rated Power :
30KW
Constant Power Speed Range :
3000-10000 rpm
Measurement Accuracy :
0.05/0.2/0.5 %FS
Cooling Method :
Air-cooled
Constant Torque Speed Range :
0-3000 rpm
Rated Voltage :
380V±10% 50Hz
Calibration Certificate :
Included
Max Working Speed :
10000 rpm
Humidity :
≤ 80%
Type :
SSCG30-3000/10000
Rated Torque :
95 Nm
Description

Product description

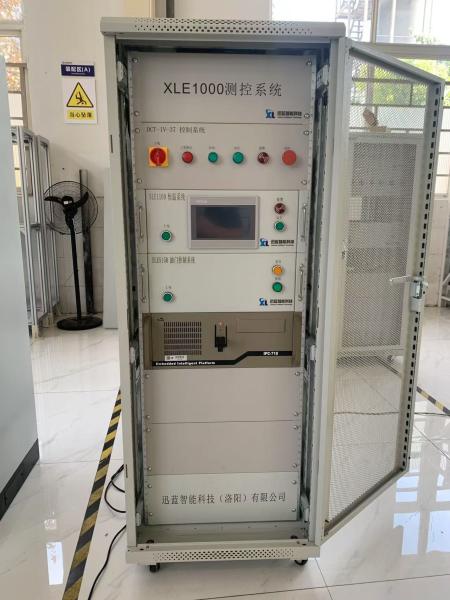

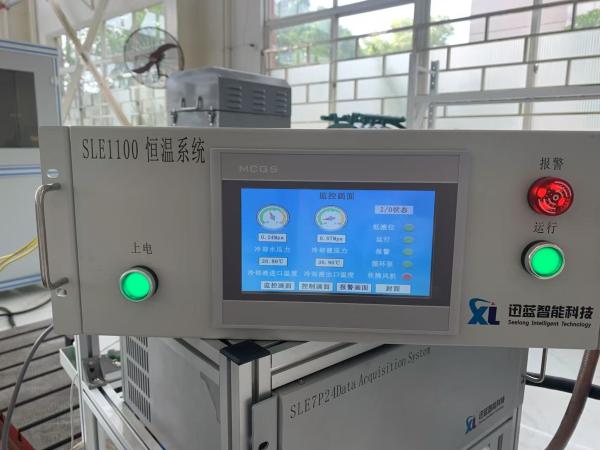

The main modules of this system are electric dynamometer, variable frequency inverter system, measurement and control system, data acquisition system and so on. At the same time, according to different test objects and different test requirements, it will also be equipped with power analyzer, battery simulator, chiller, tested equipment support system, cast iron plate and shock absorbers, protective cover and other parts.

SSCG30-3000/10000 electric dynamometer technical parameters

Item Electric dynamometer parameters
Model SSCG30-3000/10000
Brand Seelong
Rated Power (kW) 30
Rated Torque (Nm) 95
Constant Torque Speed Range (rpm) 0-3000
Constant Power Speed Range (rpm) 3000-10000
Max Working Speed (rpm) 10000
Over-speed capacity 120%
Rated voltage (V) AC 380
Rated current (A) 61
Heat-dissipating method Forced cooling

Torque Measurement Accuracy
(%FS)

 0.05/0.2/0.5 %FS
Encoder Shanghai Jingfen
Model of encoder HTL 512
Can be customized


SSCG30-3000/10000 electric dynamometers have the following advantages:

  • Integrated design: Integrated architecture innovative design scheme, simplified operating station.

  • Quick clamping: Simple and efficient clamping scheme is adopted to facilitate the operation of production line staff and meet the production line production rhythm.

  • Quick test: Through the system preset test items, can improve the efficiency of production test.

  • Convenient operation: professional testing software, user-friendly operation interface.

  • Software features: graphical interface (Win7 operating environment), open architecture software platform.

  • Data management: test project editing function, test report export function, test data analysis function, user permission setting function, support bar code entry function.

  • Strong scalability: support function customization.


Dynamometer selection

1.Output power formula: P2= N *T/ 9.55N: speed (r/min)T: torque (N.m)
2.Efficiency formula: η=P2/P1*P2: output power (W)P1: input power (W)
3.Efficiency experience value: series motor: < 65% hood pole motor: < 30%
4.Estimated induction motor torque: Tmax=(P2*9.55)/(NO *0.9)*2 times NO: no-load speed
5.Estimated series motor torque: Tmax=(P1*η*9.55)/(NO *0.6)*2 times NO: no-load speed
6.Estimate dc motor torque: Tmax=(U*I*η*9.55)/(NO *0.5)*2 times I: rated current


Company profile


Seelong Intelligent Technology (Luoyang) Co., Ltd. is a high-tech enterprise specializing in equipment measurement, control, design, manufacturing, and sales services for power engineering systems in various fields such as aerospace, automotive, and new energy; The company is located in the beautiful peony city of Luoyang.
Seelong specializes in the research and development, production, and service of testing equipment for new energy motors, hybrid power systems, engines, transmissions, and more. The main products include electric dynamometer, measurement and control system, DC power supply, and condition guarantee system. Seelong has a complete sales and service system, adhering to the business philosophy of quality survival and service development, providing users with various types of power engineering measurement and control solutions in various fields.
All employees of Seelong Intelligent Technology (Luoyang) Co., Ltd. warmly welcome sincere cooperation from domestic and foreign customers, and work together for the future and common development.

SSCG30-3000/10000 30kW High Accuracy Modular Design Electric Dynamometer Test Bench System for Testing Engine Performance

Company Certificates

SSCG30-3000/10000 30kW High Accuracy Modular Design Electric Dynamometer Test Bench System for Testing Engine PerformanceSSCG30-3000/10000 30kW High Accuracy Modular Design Electric Dynamometer Test Bench System for Testing Engine Performance
SSCG30-3000/10000 30kW High Accuracy Modular Design Electric Dynamometer Test Bench System for Testing Engine PerformanceSSCG30-3000/10000 30kW High Accuracy Modular Design Electric Dynamometer Test Bench System for Testing Engine Performance
SSCG30-3000/10000 30kW High Accuracy Modular Design Electric Dynamometer Test Bench System for Testing Engine PerformanceSSCG30-3000/10000 30kW High Accuracy Modular Design Electric Dynamometer Test Bench System for Testing Engine Performance


Packaging and Shipping

SSCG30-3000/10000 30kW High Accuracy Modular Design Electric Dynamometer Test Bench System for Testing Engine Performance

SSCG30-3000/10000 30kW High Accuracy Modular Design Electric Dynamometer Test Bench System for Testing Engine Performance


FAQ

Q: What's the minimum order quantity for our cooperation?
A: We support small trail order of 1 pcs for stock products.
Q:How can I learn more about the products?
A: Please leave your email and we will send you our electronic sample book.
Q: What's your payment term?
A: Normally 40% T/T deposit, pay in full before shipment.
Q:What's the lead time for my orders?
A: Dynamometers production cycle is 6-8 working weeks, sensors production cycle is 2-3 working weeks, other products please contact with us.
Q: How do we get the overall solution of the test bench?
A: Leave us your email, our technical staff will communicate with you about the detailed plan.
Q: Can I come to visit your factory?
A: Sure, you are always welcomed to have a visit.
