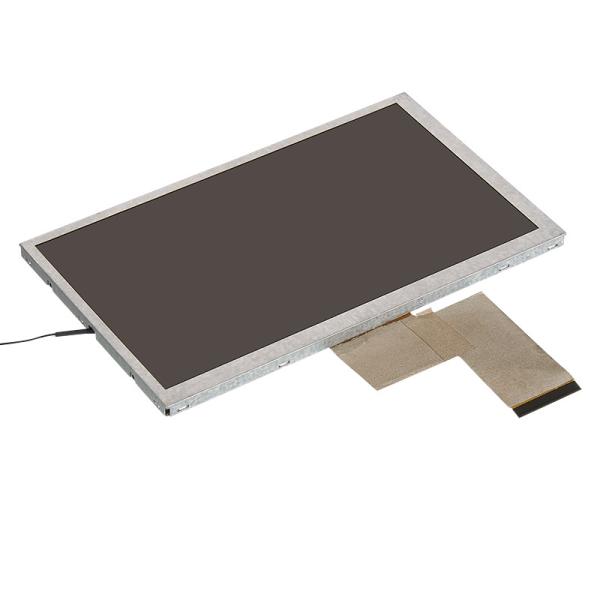

8 Inch LCD Screen 800×480 60PIN RGB Interface With Capacitive Touch

Specifications

Brand Name :

ESEN

Model Number :

T080SWV60E3501-LCM

Certification :

ISO9001/ISO14001

Place of Origin :

Shenzhen China

MOQ :

No MOQ

Price :

can be negotiated

Payment Terms :

L/C,T/T

Supply Ability :

300K/mth

Delivery Time :

6~14 working days

Packaging Details :

Cartons, Capboard, EPE, Blister Tray.

LCD Type :

8 inch

Resolution :

800(horizontal)*480(Vertical)

Glass Maker :

Innolux

Interface :

60pin 24Bit RGB

Connect type :

Connector

Color Depth :

16.7M

Technology type :

a-Si

Pixel Configuration :

R.G.B. Stripe

Display Mode :

Normally Black

Viewing Direction :

ALL

Display Spec. Pixel pitch (mm) :

0.0736×3(H) x 0.207(V)

LCM (Wx H x D)(mm) :

192.8*116.9*6.4

Active Area(mm) :

176.64 x 99.36

LED Numbers :

27 LEDS

luminance :

350cd/m2

With /Without TSP :

Without

Storage temperature :

-30--+80(℃)

Operating temperature :

-20--+70(℃)

Custom Service :

FPC, CTP (capacitive touch panel), RTP (resistive touch panel), pin definition, packing, HD-MI board

Description

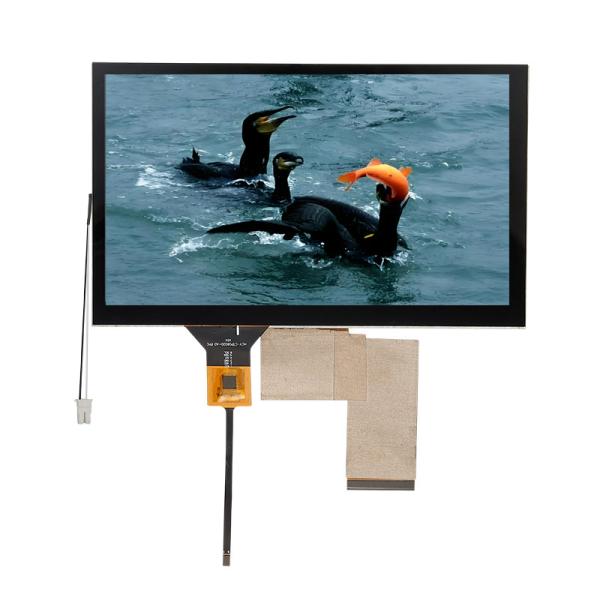

8 Inch LCD screen 800×480 60PIN RGB interface with capacitive touch TFT LCD LCD assembly LCM

It comes with lots of features with a 8-inch in-car display. 800×480 guiding lights that can display large driving and entertainment information. Color processing on this device is handled properly, providing a vibrant picture thanks to its RGB interface. 12H type TN TFT LCD display, fast response speed, suitable for dynamic screen display. The RTP is an easy to use panel which is sensitive to touch that is suitable for the driver helping to achieve an intuitive interaction for vehicle system as well as multimedia functions.

8 Inch LCD Screen 800×480 60PIN RGB Interface With Capacitive Touch

No.	Symbol	Description
1	GND	Power ground
2	AVDD	Power for Analog circuit
3	VCC	Power for Digital circuit
4	R0	Red data
5	R1	Red data
6	R2	Red data
7	R3	Red data
8	R4	Red data
9	R5	Red data
10	R6	Red data
11	R7	Red data
12	G0	Green data
13	G1	Green data
14	G2	Green data
15	G3	Green data
16	G4	Green data
17	G5	Green data
18	G6	Green data
19	G7	Green data
