150 Meter Roll Length Pipeline Reinfored Welded Mesh For Gas Pipelines
150 Meter Roll Length Pipeline Reinfored Welded Mesh For Gas Pipelines
150 Meter Roll Length Pipeline Reinfored Welded Mesh For Gas Pipelines
150 Meter Roll Length Pipeline Reinfored Welded Mesh For Gas Pipelines
150 Meter Roll Length Pipeline Reinfored Welded Mesh For Gas Pipelines
150 Meter Roll Length Pipeline Reinfored Welded Mesh For Gas Pipelines
Specifications
Brand Name :
H&F
Model Number :
HF-250513
Certification :
ISO-9001
Place of Origin :
Hebei, China
MOQ :
28000 Square Meters
Price :
USD4.82/M2~USD4.95/M2
Payment Terms :
T/T, Western Union
Supply Ability :
88000 Square Meters per month
Delivery Time :
According to order quantity
Packaging Details :
50 rolls per bundle or as customers' requirements
Product Name :
Pipeline Reinfored Welded Mesh
Key word :
Pipeline Reinfored Mesh
Surface treatment :
hot dipped galvanized
Line wire quantity :
6lines,8lines,10lines
Material :
Galvanized wire
Wire diameter :
1.8mm-2.7mm
Middle line wire pitch :
25.4 mm
Hole Size :
25.4mm x 67mm
Cross wire pitch :
67 mm or 92.4 mm
Zinc coated :
70gm²~300g / m² or custom
Exposed Wire Edge :
≤ 2.5 mm
Both sides line wire pitch :
25.4 mm or 50.8 mm
Width :
190.5mm
Length :
140m,145m,280m etc
Roll Diameter :
700mm~1100mm
Hardness range :
485N/mm2~650N/mm2
Load container way :
In bulk or in pallet
Sample :
Free sample can test quality
Description

150Meter Roll Length Pipeline Reinfored Welded Mesh For Gas Pipelines

Pipeline Reinfored Welded Mesh Description:

Pipeline Reinforced Welded Mesh also called Pipeline Reinforced Mesh.It is belong to our welded

mesh.But it is our company special design the kind use for pipeline projects.

It need use high quality galvanized wire.Through professional welded in standard hole size.Normal

hoe size is 25.4mm*67mm.The roll width is in 190.5mm.Our roll length have many kinds,like 140m,

150m,180m,280m or custom.

It has strong tensile strength,strong welded point,anti-rust and anti-corrosion and many advantages.

So widely use for gas and oil pipelines projects.

Pipeline Reinfored Welded Mesh specification list:

Product Name Pipeline Reinfored Welded Mesh
Material Hot dipped galvanized wire
Wire diameter 1.8mm-2.7mm
Hole size 25.4mm x 67mm
Surface treatment hot dipped galvanized
Zinc coated 70gm²~300g / m² or custom
Middle line wire pitch 25.4 mm
Cross wire pitch 67 mm or 92.4 mm

Both sides

line wire pitch

 25.4 mm or 50.8 mm
Line wire quantity 6lines, 8lines or 10lines
Exposed Wire Edge ≤ 2.5 mm
Hardness range 485N/mm2~650N/mm2
Roll Diameter 700mm-1150mm
Width dimensions 190.5mm
Length dimensions 140m,145m,280m etc
Sample Free sample can test quality

Pipeline Reinfored Welded Mesh export specification details:

150 Meter Roll Length Pipeline Reinfored Welded Mesh For Gas Pipelines

Pipeline Reinfored Welded Mesh normal export 4kinds:

150 Meter Roll Length Pipeline Reinfored Welded Mesh For Gas Pipelines
Type-01 Type-02 Type-03 Type-04

Pipeline Reinfored Welded Mesh Good Features:

  • New material
  • Good quality
  • Hole size standard and uniform
  • Roll width and Roll Length make in enough
  • Surface smooth and bright
  • Strong tensile strength
  • Anti-water
  • Anti-rust
  • Anti-corrosion
  • Long time use without any problem
  • Easy install and easy store
  • Suitable for ocean ship
  • Fast product time
  • Strong packing way


Pipeline Reinfored Welded Mesh packing way:

  • In bundle,normal 2rolls,4rolls or 6rolls
  • Load in pallet
  • Load in wooden case
  • In bulk load in container
  • Same as clients' required

Pipeline Reinfored Welded Mesh widely Applications:

  1. Water and Wastewater Pipeline
  2. Subsea Gas & Oil Pipeline
  3. Everglades Gas Pipeline
  4. River Bottom Gas & Oil Pipeline
  5. Chemical Processing Pipeline

150 Meter Roll Length Pipeline Reinfored Welded Mesh For Gas Pipelines

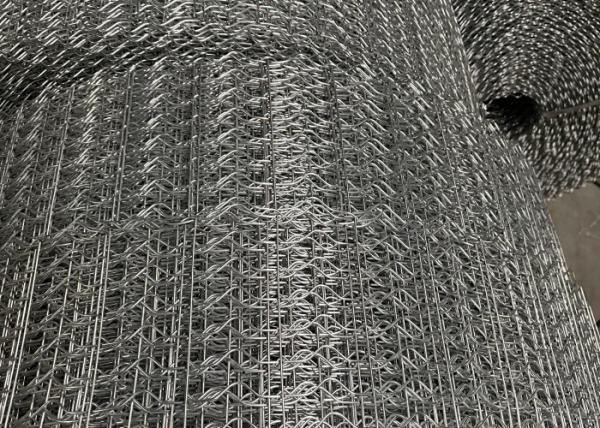

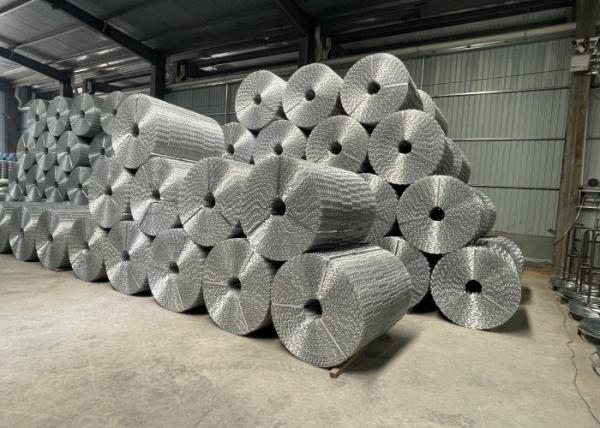

Show our Pipeline Reinfored Welded Mesh product pictures:

150 Meter Roll Length Pipeline Reinfored Welded Mesh For Gas Pipelines150 Meter Roll Length Pipeline Reinfored Welded Mesh For Gas Pipelines

150 Meter Roll Length Pipeline Reinfored Welded Mesh For Gas Pipelines

150 Meter Roll Length Pipeline Reinfored Welded Mesh For Gas Pipelines150 Meter Roll Length Pipeline Reinfored Welded Mesh For Gas Pipelines

Our company:

150 Meter Roll Length Pipeline Reinfored Welded Mesh For Gas Pipelines150 Meter Roll Length Pipeline Reinfored Welded Mesh For Gas Pipelines

150 Meter Roll Length Pipeline Reinfored Welded Mesh For Gas Pipelines

150 Meter Roll Length Pipeline Reinfored Welded Mesh For Gas Pipelines
