Machine For U Shape Forming Of Insulation
Machine For U Shape Forming Of Insulation
Specifications
Brand Name :
WIND AUTOMATION
Model Number :
WIND-300-WF
Place of Origin :
China
MOQ :
1pc
Price :
Negotiable
Payment Terms :
T/T
Delivery Time :
30 working days
Packaging Details :
Wooden pallet suitable for sea or air shipment L910 mm x W880 mm x H1300mm3
Condition :
New
Insertion speed :
0.5 to 0.7 second per slot
Material :
DMD, DM, Polyester film
The Usual Size :
8mm,10mm,12mm,15mm
Machine Color :
White or Per Customer Requirement
After sales :
Engineer available for oversea support
Description

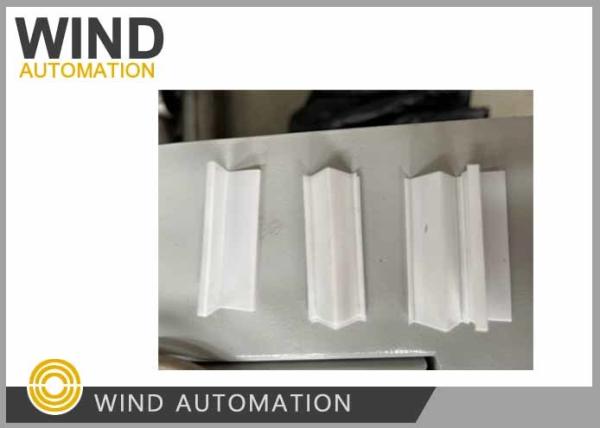

Machine For U Shape Forming Of Insulation​ WIND-300-WF

This machine form and cut the wedge for stators. It can cut, form, heat wedge. Wedge feeding length, and cutting speed can be programmable in HMI. It adopts a double row mould for wedge cutting. Wedge feeding is controlled by step motor.

(1) Specification

Cycle time 100pcs/min
Cutting thickness 0.1~0.7mm (can be custom made)
Feeding length

Varies

(Step motor can be custom made)
Total power 0.3KW
Power supply 220V 50/60HZ
Weight 150KG
Dimension 700x550x1100mm


(2) Feature
Varies Wedge Forming Cuffing Creasing Cutting Machine For Slot Wedge Manufacturing

Simple and easy to operate,
No skilled operator needed
Wide application for DMD, NMN,Nomex, Mylar,Fiber,Fiberglass reionformed polyester and so on
No regular maintenance needed

(3) Application
Suitable for small and medium three phase motor, gasoline generator motor etc

DMD, NMN,Nomex, Mylar,Fiber and so on

Question and Answer:

Question:

our topsticks (or wedge sample) can be 0.020”. Please advise if your automatic wedge forming machine

can form this wedge or not.

Answer:

in theory the automatic wedge forming machine can only form DMD paper below thickness 0.35mm,

The wedge should be heated on machine before formed,

Your wedge is NMN with 0.51mm can be custom made to be formed,

Please click below links to view video

Wedge Forming Machine Demo

How to Change Polyester for WIND-300-WF

How to Load Polyester for U shape

How to change tooling and Load Polyester for V shape
