8~30V DC Microwave Motion Sensor Switch Solar System / Non Dimmable Constant Voltage Driver
8~30V DC Microwave Motion Sensor Switch Solar System / Non Dimmable Constant Voltage Driver
8~30V DC Microwave Motion Sensor Switch Solar System / Non Dimmable Constant Voltage Driver
8~30V DC Microwave Motion Sensor Switch Solar System / Non Dimmable Constant Voltage Driver
8~30V DC Microwave Motion Sensor Switch Solar System / Non Dimmable Constant Voltage Driver
8~30V DC Microwave Motion Sensor Switch Solar System / Non Dimmable Constant Voltage Driver
8~30V DC Microwave Motion Sensor Switch Solar System / Non Dimmable Constant Voltage Driver
8~30V DC Microwave Motion Sensor Switch Solar System / Non Dimmable Constant Voltage Driver
Specifications
Brand Name :
Hynall
Model Number :
HNS105
Certification :
RED, FCC, RoHS
Place of Origin :
Shenzhen, China
MOQ :
300pcs
Price :
To be negotiated
Payment Terms :
T/T
Supply Ability :
30,000pcs / month
Delivery Time :
3~4 weeks for bulk orders
Packaging Details :
Bubble bag + carton. (color box or blister package also available on request)
Input voltage :
8~30V DC
Operation temperature :
-20℃ ~ +70℃
Output :
1.5A max.
Model :
HNS105
Type :
Microwave motion sensor
Function :
tri-level dimming
Description

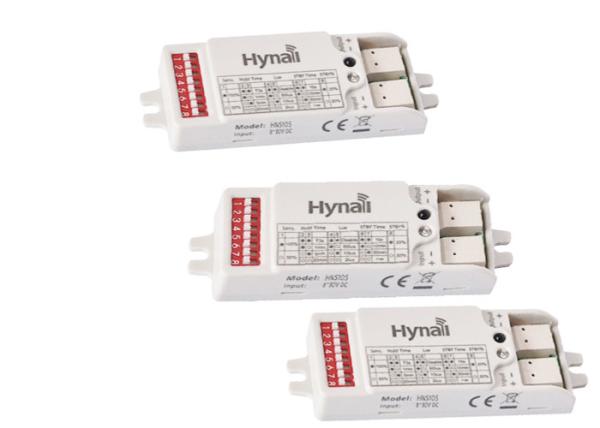

Microwave motion senor switch, special for use with solar system or upgrade standard fixture with non-dimmable constant voltage LED driver into sensor light with dimming function

Size:

8~30V DC Microwave Motion Sensor Switch Solar System / Non Dimmable Constant Voltage Driver8~30V DC Microwave Motion Sensor Switch Solar System / Non Dimmable Constant Voltage Driver

Features:

1. 8 pin DIP switch setting
2. Rated output: 1.5A max.
3. Detection range: Up to 12m in diameter
4. Mounting height: 3~6m
5. Operation temperature: -20℃ ~ + 70℃

6. Special designed for : 1-solar system application

2-low voltage halogen lamp application

7. Super small size, flexible to be integrated into any suitable fixtures.

8. Super compact, flexible to be integrated into any suitable fixtures.

9. Daylight monitoring function for built-in application.

10. RoHS compliant.

Settings:

Detection range:

can be reduced by selecting the combination on the DIP switches to fit orecisely each application.

100%, 50% for your options

Hold-time

means the time period to keep the lamp on 100% after motion detected.

T3s, 1min, 5min,20min for your options

Daylight sensor

means the daylight threshold to enable or disable the sensor function.

Disable, 50lux, 10lux,2lux for your options

Stand-by period

this is the time period that the lamp remains at low light level before it is completely switched off in the long absence of people.

10s,10min,30min, +∞ for your options

Stand-by dimming level

this is the dimmed low light level you would like to have after the hold-time in the absence of people.

20%, 50% for your options

Wiring diagram:

8~30V DC Microwave Motion Sensor Switch Solar System / Non Dimmable Constant Voltage Driver8~30V DC Microwave Motion Sensor Switch Solar System / Non Dimmable Constant Voltage Driver
