Specifications
Brand Name :
ZL
Model Number :
ZL-2816
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
100 set per month
Delivery Time :
7-10 days
Packaging Details :
Packaged within wooden case
Power :
220v 50hz
Maximum load :
2kg
Minimum decomposition :
0. 1g
Maximum measurement height :
100mm
Minimum trimming distance :
0.01mm
Measurement speed range :
0-100mm/min
Description

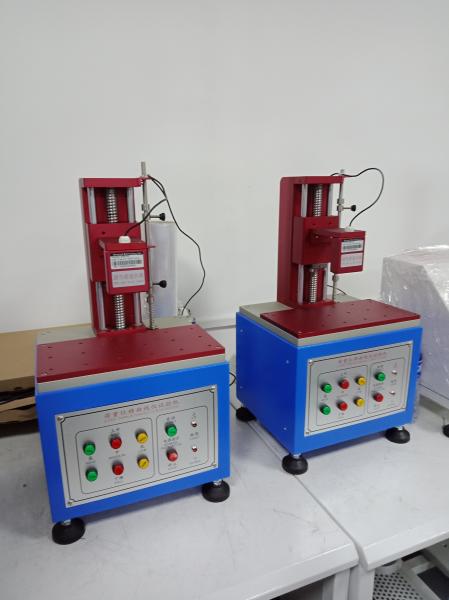

Key Stoke Button Load Displacement Curve Laptop Testing Equipment

Summary:

Key-switch load displacement curve tester is applicable to various keys and switches (load-displacement)

Test, simple and convenient operation, all data can be stored (test conditions, displacement curves, life curves, inspection reports ---- etc.)

This machine uses a servo motor drive to provide high accuracy (load-displacement) measurements.

Features:

1. PEAK FORCE, RETURNFORCE, DISTANCE and CLICK rates can be displayed directly on the graph without manual calculation.

2. The measurement curve is remembered by the computer and can be zoomed in and out at any time. An A4 paper can be placed arbitrarily designated N graphs.

3. Measurement items can be entered in the upper and lower specification values. The measurement results can be automatically determined OK or NO.

4. It can input the maximum measurement stroke and load, and the computer automatically controls.

5. Test reports can be converted to other report formats such as EXCEL.

6. Inspection reports can be generated automatically.

7. The inspection report header can be modified at any time.

8. The test conditions are set by the computer screen, convenient and fast.

9. Test data is stored on the hard disk. (Each data can be stored, unlimited times)

10. The computer prints and stores the force displacement curve directly and checks the report. (Not required Square paper, usually A4 paper)

11. Load unit shows N, Ib, g, kg, can be switched freely.

Technical Parameters:

Determination of maximum load 2kg
Minimum decomposition 0. 1g
Maximum measurement height 100mm
Minimum trimming distance 0.01mm
Measurement speed range 0-100mm/min

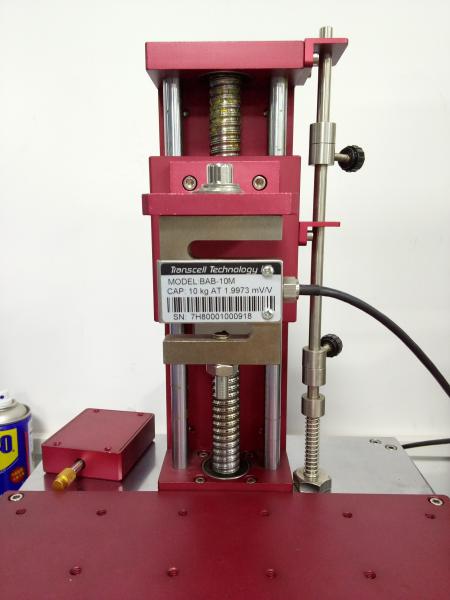

Transmission mechanism ball screw
Drive motor Panasonic servo motor
Size 300*270*500(W*D*H)mm
Weight 31Kg (machine)
Power supply AC110V or 220V
