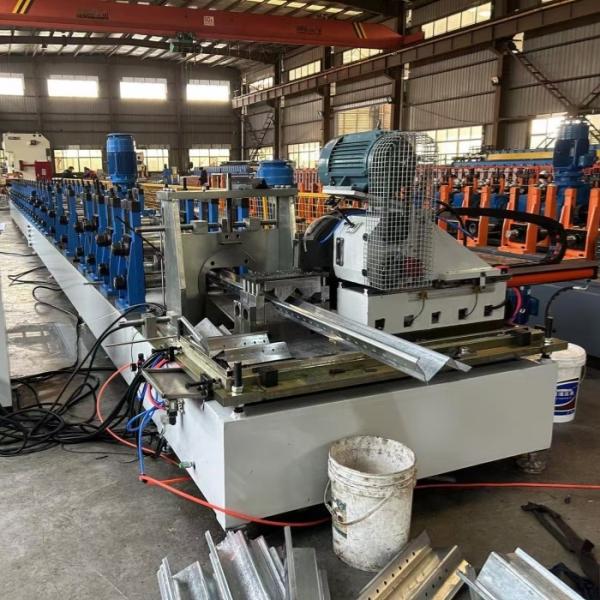

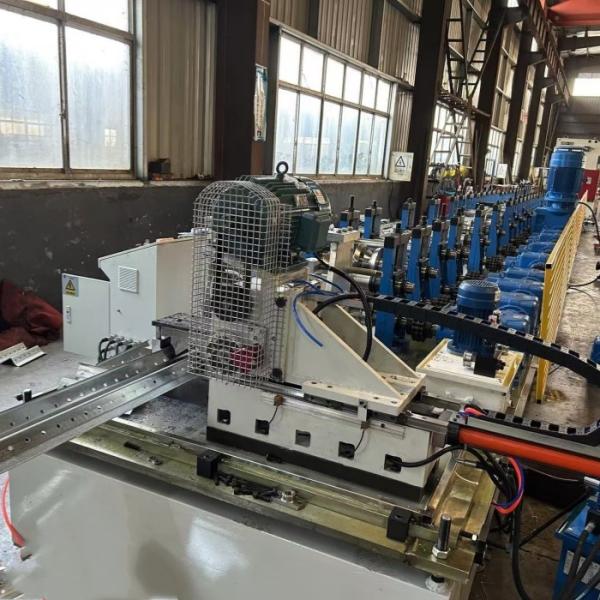

High-speed Fully Automatic CZ Purlin Roll Forming Machine with Punching Gearbox Drive
High-speed Fully Automatic CZ Purlin Roll Forming Machine with Punching Gearbox Drive
High-speed Fully Automatic CZ Purlin Roll Forming Machine with Punching Gearbox Drive
High-speed Fully Automatic CZ Purlin Roll Forming Machine with Punching Gearbox Drive
High-speed Fully Automatic CZ Purlin Roll Forming Machine with Punching Gearbox Drive
High-speed Fully Automatic CZ Purlin Roll Forming Machine with Punching Gearbox Drive
High-speed Fully Automatic CZ Purlin Roll Forming Machine with Punching Gearbox Drive
High-speed Fully Automatic CZ Purlin Roll Forming Machine with Punching Gearbox Drive
Specifications
Brand Name :
Hangzhou Maxwell
Model Number :
Purlin
Certification :
CE,ISO9001
Place of Origin :
Jiangsu,China
MOQ :
1 SET
Price :
USD21000-USD35000
Payment Terms :
T/T, , L/C
Supply Ability :
30 sets per month
Delivery Time :
60 work days
Packaging Details :
Nude Packaging in a 40 feet container
Name :
High-speed Fully Automatic CZ Purlin Roll Forming Machine with Punching Gearbox Drive
Forming Thickness :
0.3-0.8mm
Forming Speed :
15-20m/min
Roller Material :
GCr15 bearing steel with quenching treatment
Shaft Material :
No.45 fine steel with qunching and tempering
Warranty :
1 Year
Control System :
PLC
Voltage :
380V,50HZ,3PH(Or as customers' request)
Description

High-speed Fully Automatic CZ Purlin Roll Forming Machine with Punching Gearbox Drive

The Z-shaped punched purlin roll forming machine is a highly efficient equipment designed to produce Z-shaped purlins with precision punching. It transforms raw materials, such as galvanized steel or hot/cold-rolled steel strips, into high-quality Z-shaped components used in steel structure systems. The machine integrates advanced technology to ensure excellent performance, durability, and accuracy in every production cycle.

This machine's fully automated system combines feeding, leveling, punching, cutting, and roll forming processes. The intelligent control system enables quick adjustments to the size and specifications of the Z-shaped purlins, offering flexibility to meet diverse project requirements. Its high-speed operation not only improves productivity but also reduces labor costs significantly.

In addition to its efficiency, the Z-shaped purlin roll forming machine excels in quality control. Each component is manufactured to meet strict standards, ensuring reliability and consistency in applications such as roof support systems, wall beams, and other structural elements. With its robust design and cutting-edge technology, this machine is an essential tool for modern steel structure construction.

High-speed Fully Automatic CZ Purlin Roll Forming Machine with Punching Gearbox Drive

Main Technical Parameter

Fully automatic Z Purlin Making Machine
1.Formed Material
PPGI,GI,AI
Thickness:0.3-0.8mm Width:1000mm/1250mm(customized)
2.Decoiler
Hydraulic automatic decoiler
Manual decoiler(For free)
3.Main body

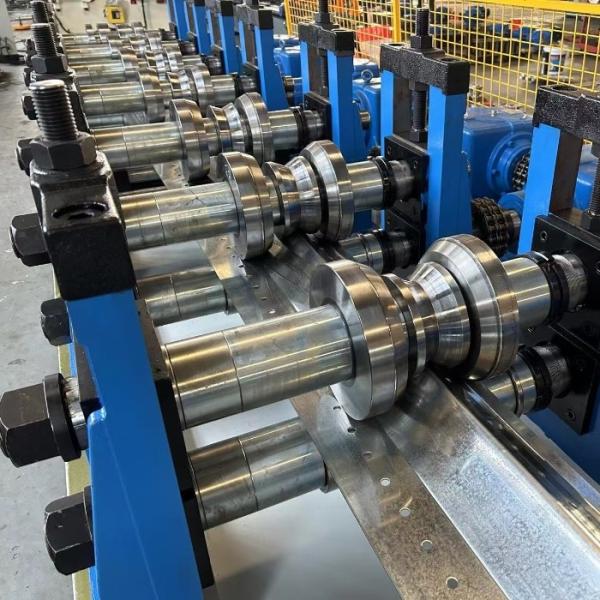

Roller station
18 station(As your requirement)
Diameter of shaft
80mm solid shaft
Material of rollers
GCr15 bearing steel, hard chrome plated on the surface
Machine body frame
350 H steel
Drive
Gearbox transmission
Dimension(L*W*H)
9500*1600*1600(customize)
Weight
12T
4.Cutter
Automatic
cr12mov material, no scratches, no deformation
5.Power
Motor Power
22.5KW
Hydraulic system power
5.5KW
6.Voltage
380V 50Hz 3Phase
As your requirement
7.Control system
Electric Box
Customized(famous brand)
Language
English(Support multiple languages)
PLC
Automatic production of the whole machine. Can set batch, length, quantity, etc.
18.Forming Speed
15-20m/min
The speed is adjustable

High-speed Fully Automatic CZ Purlin Roll Forming Machine with Punching Gearbox Drive

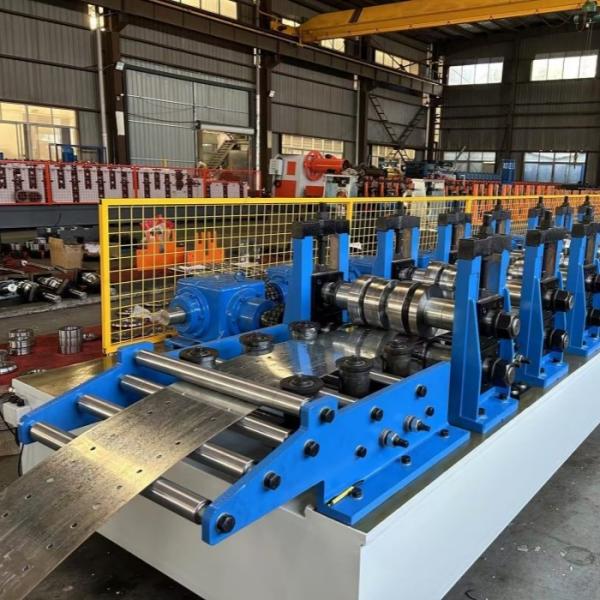

Guide Feeder

High-speed Fully Automatic CZ Purlin Roll Forming Machine with Punching Gearbox Drive

Packaging and Shipping

1. Anti-corrosion oil is sprayed during transportation to prevent oxidation of the machine

2. Packaging isolation film to prevent machine oxidation during transportation

3. Fixed on the container with wire to prevent damage to the machine during transportation


High-speed Fully Automatic CZ Purlin Roll Forming Machine with Punching Gearbox Drive

After-sales Service

1. Technical Support: Our experienced technical team is available to provide assistance and guidance on product installation, operation, and maintenance.

2. Spare Parts Supply: We maintain a stock of genuine spare parts to quickly solve any equipment issues and minimize downtime.

3. Training Programs: We offer training programs for your staff to ensure they are proficient in using and maintaining our equipment effectively.

4. Warranty Coverage: The warranty is one year after the client receives the machine. All our products come with a warranty period, during which we provide prompt repair or replacement services for any defects covered under the warranty terms.

5. Regular Maintenance: We recommend and offer scheduled maintenance services to keep your equipment in optimal condition and maximize its lifespan.

6. Customer Feedback: We value your feedback and continuously strive to improve our products and services based on your input.
