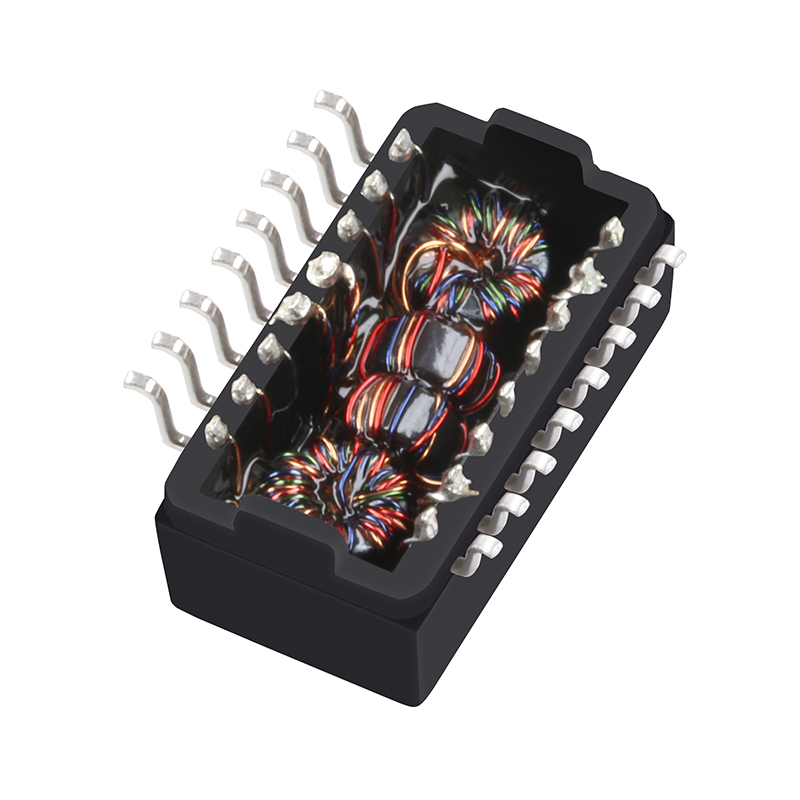

TG110-HPE7N5LF SMD Single 10/100BASE-TX PoE+ Isolation Modules TG110-HPE7N5LFTR
TG110-HPE7N5LF SMD Single 10/100BASE-TX PoE+ Isolation Modules TG110-HPE7N5LFTR
TG110-HPE7N5LF SMD Single 10/100BASE-TX PoE+ Isolation Modules TG110-HPE7N5LFTR
TG110-HPE7N5LF SMD Single 10/100BASE-TX PoE+ Isolation Modules TG110-HPE7N5LFTR
TG110-HPE7N5LF SMD Single 10/100BASE-TX PoE+ Isolation Modules TG110-HPE7N5LFTR
TG110-HPE7N5LF SMD Single 10/100BASE-TX PoE+ Isolation Modules TG110-HPE7N5LFTR
Specifications
Brand Name :
LINK-PP
Model Number :
LP41661ANL
Certification :
UL,RoHS,Reach,ISO
Place of Origin :
Guangdong,China
MOQ :
400/2000/10K/25K
Price :
$0.06-$3.2
Payment Terms :
TT,NET30/60/90 Days
Supply Ability :
3KK/Month
Delivery Time :
Stock
Packaging Details :
T&R
Specifications :
TG110-HPE7N5LF
Spec-2 :
TG110-HPE7N5LFTR
Mounting :
SMD
Apllication :
10/100base-T POE(+)
Temperature :
- 40℃ TO + 85℃
File :
PDF/3D/ISG/Stp/Step/Datasheet
Description
TG110-HPE7N5LF SMD Single 10/100BASE-TX PoE+ Isolation Modules TG110-HPE7N5LFTR

Product Features:

  • Equivalent to TG110-HPE7N5LF
  • l IEEE 802.3 Ethernet Compatible,10/100 Base-TX
  • Surface Mountable(Miniature size)
  • 10/100 Base-T Transformer Modules
  • operating temperature:-40°C - +85°C
  • Hipot test: 1500Vrms 1min.
  • Auto MDIX capable
Mounting Surface Mount
Family 10/100M POE/POE+ Magnetics
Transformer Type Isolation Transformer
Minimum Crosstalk -40@100MHz dB
Lead Style Gull Wing
Package Type SMD
Maximum OCL Inductance 0.35 mH
Maximum Isolation Voltage 1500 Vrms
Minimum CMRR -40@1MHz to 100MHz dB
Minimum Return Loss -10@100MHz dB
Turns Ratio 1:1
Operating Temperature -40 to 85 °C
Packaging Tape and Reel
Maximum Insertion Loss -1.1@1MHz to 100MHz dB
Product Length 12.7 mm
Product Height 5.65 mm
Product Width 9.45 mm
