SPI 128 * 160 1.77 TFT Touch Screen 12 O'Clock Direction ISO 14001 Approved
SPI 128 * 160 1.77 TFT Touch Screen 12 O'Clock Direction ISO 14001 Approved
SPI 128 * 160 1.77 TFT Touch Screen 12 O'Clock Direction ISO 14001 Approved
SPI 128 * 160 1.77 TFT Touch Screen 12 O'Clock Direction ISO 14001 Approved
SPI 128 * 160 1.77 TFT Touch Screen 12 O'Clock Direction ISO 14001 Approved
SPI 128 * 160 1.77 TFT Touch Screen 12 O'Clock Direction ISO 14001 Approved
Specifications
Brand Name :
Elite Tree
Model Number :
ET177NP03
Certification :
ISO9001:2015 / ISO14001
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
100Kpcs~ per month
Delivery Time :
5days for sample and 20-25 days for mass production
Packaging Details :
In anti-statics bag packed in carton or according to the customer's requirement
Display Type :
TFT LCD Screen 1.77 Inch 128 * 160
Viewing Direction :
12 O‘clock
Driver IC :
ST7735S
Interface :
SPI
Description

TFT 1.77 Inch 128 * 160 Resolution TFT LCD Screen With SPI Interface​

TFT LCD Screen

Product Information

Display Type 1.77 Inch TFT LCD Screen
Resolution 128 * 160
Outline Dimension 34.70mm * 46.70mm * 2.30mm
Active area 28.032mm * 35.04mm
Interface SPI
Viewing Direction 12 O'clock
LED backlight color
 White LED
Driver IC ST7735S
Touch Panel Without (Optional)
Power supply(typ) 3.3V
Operating temp
 -20ºc~70ºc
Storage temperature -30ºc~80ºc
Brightness 350cd/m2
If accept customized Yes
RoHS compliance Yes

Our advantages


1) Small quantity accepted
2) Competitive price and short lead-time and best service
3) ROHS/ ISO 14001 and other related certificates are available
4) Reply the mail within 24 hours

​Application

Autoelectronics, 3D&Shutter, Meters & Instrument, Telecommunication,

Domestic electrical appliance(Household appliance), Fuel dispensers,

Office equipment, Medical &health equipment, Business related facility, Education electronics, etc.

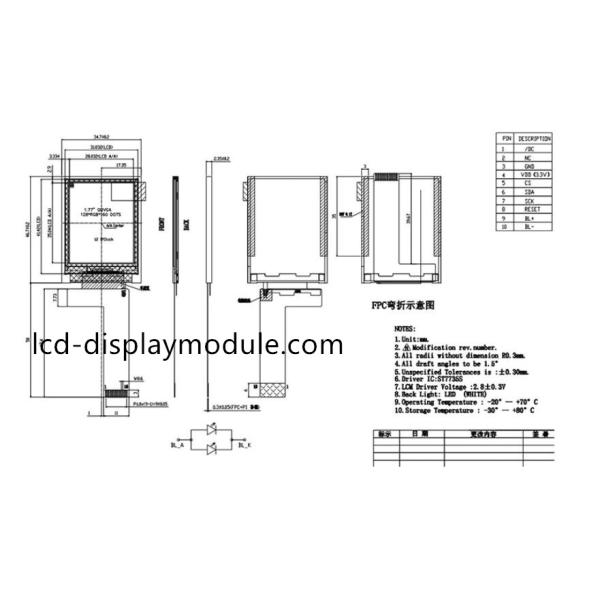

Product Drawing

​

SPI 128 * 160 1.77 TFT Touch Screen 12 O'Clock Direction ISO 14001 Approved
