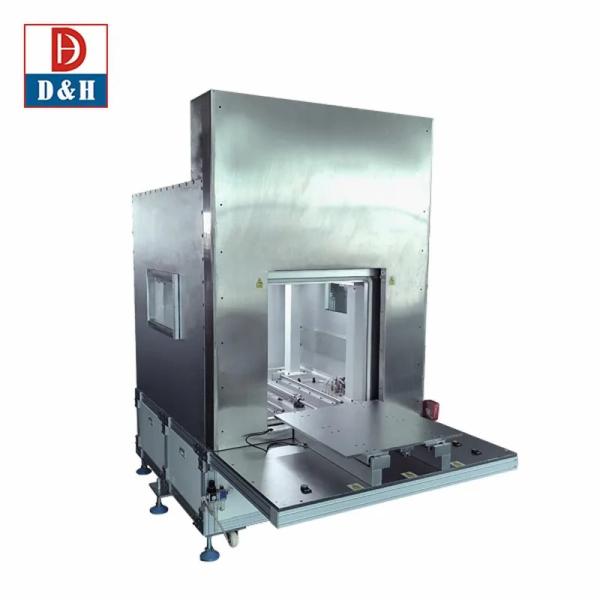

Automation Customizable Tank Large Capacity Vacuum Injector Machine AB Gluing Potting Machine
Automation Customizable Tank Large Capacity Vacuum Injector Machine AB Gluing Potting Machine
Automation Customizable Tank Large Capacity Vacuum Injector Machine AB Gluing Potting Machine
Automation Customizable Tank Large Capacity Vacuum Injector Machine AB Gluing Potting Machine
Automation Customizable Tank Large Capacity Vacuum Injector Machine AB Gluing Potting Machine
Automation Customizable Tank Large Capacity Vacuum Injector Machine AB Gluing Potting Machine
Automation Customizable Tank Large Capacity Vacuum Injector Machine AB Gluing Potting Machine
Automation Customizable Tank Large Capacity Vacuum Injector Machine AB Gluing Potting Machine
Automation Customizable Tank Large Capacity Vacuum Injector Machine AB Gluing Potting Machine
Automation Customizable Tank Large Capacity Vacuum Injector Machine AB Gluing Potting Machine
Specifications
Brand Name :
D&H
Model Number :
VGB-650B
Place of Origin :
CHINA
Certification :
CE
MOQ :
1
Price :
5999
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
10 Work Days
Packaging Details :
Wooden Box Packing for Sea Shipment
Size :
2050mm*1250mm*2500mm
Weight :
800 KG
Tank Compacity :
10L,25L,40L Optional
Ratio :
1:1-10:1
Applicable Industries :
Manufacturing Plant, Energy & LED
Control System :
PLC/Touch Screen
Mixing Mode :
Static /Dynamic Mixing
Warranty :
12 Months
Description

Overview:




Potting and encapsulation involve embedding products in liquid resin to protect them from environmental damage, including corrosion and vibrations. We provide automated and semi-automated fluid dispensing machines for potting, including 2-component and epoxy dispensing systems, as well as related vacuum systems. Our equipment includes high-precision dispensing valves, automated glue dispensers, and glue mixing machines, designed for electronics production.

Automation Customizable Tank Large Capacity Vacuum Injector Machine AB Gluing Potting Machine

Applications:

Industry: Capacitor, power supply, transformer, ignition coil, reverse sensor, circuit board, electronic ballast, other electronic products, and LED products where glue potting is demanded.

Automation Customizable Tank Large Capacity Vacuum Injector Machine AB Gluing Potting Machine

Glue:
Epoxy, silica gel, AB glue, PU, and other glue that need matching

Optional Function:
1, Evacuation
2, Heating
3, Geared pump & plunger piston pump are available; Customers can choose to needs.
4, Control will be chosen to be added to the program to needs.

ITEM
Parameter
Mixing ratio
1:1--10:1 adjustable
Size
2050*1250*2500mm
Displacement speed
300mm/s(speed)
Operation mode
Manual/Auto
Accuracy
±4%(output volume)±2%(mixing)
Pump
Optional
Flow control
Digital input
Program memory
99pcs-999pcs
Motion trail
Dot, line, curve, circle
Automatic controlling system
PLC/ Touch screen (to achieve program programming, modification, storage, and so on)
Out-glue control system
AB glue back suction valve, achieve AB glue independent operation
Programmatically
Tech programming/or computer systems (Micro software Windows 7, Windows10 optional)
Mixing method
Static/ Dynamic mixing
Power supply
220V/50Hz/1500W without heating
Air source
0.5-0.7Mpa
Viscosity range
1-20000cps
A tank
10L 25L 40L stainless tank(optional)
B tank
10L 25L 40L stainless tank(optional)
Others
AB tank, A pump, AB pipeline heating function

Customization:

Daheng Automation specializes in potting and dispensing systems for various resin applications, including 1- and 2-component polyurethanes, epoxies, silicones, and more. We provide solutions for potting and encapsulation to protect products from harsh environments, including vacuum and atmosphere pressure options. Our offerings include automatic and semi-automatic fluid dispensing machines, dual-component systems, and high-precision dispensing robots. We have the right equipment for adhesive, epoxy, or silicone applications to meet your needs.

D&H accepts a variety of customizations including size, number of tanks, temperature control, etc.

Please contact us for more information!
