MK9 5000pcs/min Cigarette Making Machine and Assembling Machine With Tray filler
MK9 5000pcs/min Cigarette Making Machine and Assembling Machine With Tray filler
Specifications
Brand Name :
UPPER BOND
Model Number :
MK9
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
80 SETS/YEAR
Delivery Time :
30Works Dates
Packaging Details :
WOODEN CASES
Name :
cigarette making machine
Capacity :
5000cig/min for the king size cigarettes
Frequency :
50Hz
Total power :
50KVA
Cigarette Filter length :
65 ～ 110± 0.5 mm
Tobacco rod length :
55 ～ 90 mm
Cigarette diameter :
φ 5.4 ～ φ 9.0 mm
Power supply :
380V ± 10%(3phases)
Outside dimensions :
HCF 80 Tray Filler ： 2350×2400× 2100mm
Description

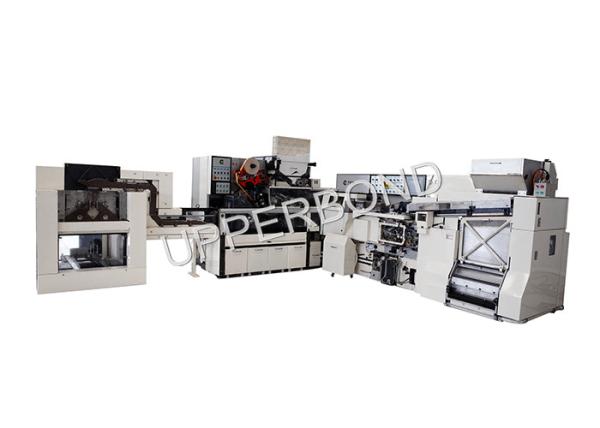

MK9 5000pcs/min Cigarette Making Machine and Assembling Machine With Tray filler

Introduction

MK9+MAXS+HCF80 Cigarette Making Machine and Assembling Machine is used for making cigarette and filter rod of the cigarette.

In order to meet the international demand of the small-sized and medium-sized factory, we have successfully improved MK9+MAXS+HCF80 Cigarette Making Machine And Assembling Machine combination.

The Upgraded MK9+MAXS+HCF80 Cigarette Making Machine. And Assembling Machine Combination adopts Servo drive, PLC controller, industrial bus, touch screen, and valve terminal. Its speed has reached 5,000cig/min. Through our development of many parts, its stability and capability have been greatly improved. So far, it has been exported to America, Canada, Germany, Czech, Malaysia and Bosnia & Herzegovina. Nowadays MK9-MAX combination is our main product for export and enjoys wide popularity in the world.



Main Parameters :

Output: 5000cig/min for the king size cigarettes
Frequency: 50Hz
3500cig/min for the super slim cigarettes
Total power: 50KVA
Cigarette parameter
Outside dimensions
Filter-cigarette length: 65 ～110± 0.5 mm
Cigarette maker : 3630× 1270 × 1870mm
Tobacco rod length: 55 ～90 mm
Plug assembler: 3340×1340× 1820mm
Cigarette diameter: φ 5.4 ～φ 9.0 mm
Tray Filler : 2350×2400× 2100mm
Power supply: 380V ± 10%(3phases)
Total weight: 8600kg



Advantages:

1. The cigarette cutting system uses the double-knife single-cutting system with lower-rise temperature and lower noise. This gives the very good quality of the cigarette cut.

2. The complete suction system and high air pressure system .

3. The hopper system adopts AC servo motor to directly drive the tobacco cutting system. The timing belts are used instead of the gears, so the even tobacco-feeding is greatly improved and the maintenance cost is reduced as well.

4. It adopts AC servo driving system that simplifies the mechanical structures and reduces the failure and maintenance cost, and improves the transmission precision.

5. Electric control system:

◆ control center: it adopts the SIEMENS PLC S7-300 series.

◆ weight controller: the microwave weight control system is adopted to avoid any harm to people.

◆ man-machine interface: The SIEMENS touch screen provides friendly man-machine interface, which displays the machine status and production data precisely. It is also convenient to modify the system parameter and check out the failure.
