Specifications
Brand Name :
Firepower
Model Number :
IMU6-1A
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T,L/C
Supply Ability :
1000pcs
Delivery Time :
1 week
Packaging Details :
wooden carton
In-Run Bias Stability(@ Allan variance) :
0.1°/h
Gyro Range :
±400º/s
Angular Random Walk :
0.15 °/√h
Accelerometer Range :
±30
Accelerometer Bias Stability :
0.05mg
3 dB Bandwidth :
200Hz
Description

1.1 Main Technical Parameters

1.1.1 Gyroscope Specifications

Parameter

Unit

IMU6-1

IMU6-1A

IMU6-1B

IMU6-1C

Measuring range (customizable)

°/s

±400

±400

±400

±2000

In-Run Bias Stability(@ Allan variance)

°/h

0.3

0.1

0. 05

1

Bias stability @10s

(10s smooth, 1σ, room temperature)

°/h

3

1

0.5

6

Bias stability in full temperature

°/h

10

3

2

18

Angular Random Walk

°/√h

0.15

0.1

0.02

0.3

Bias repeatability

(1σ )

°/h

1

0.5

0.3

2

Bias acceleration sensitivity

°/h/g

1

1

1

2

Scale Factor Non-Linearity(1σ )

ppm

150

150

150

300

Scale Factor Repeatability (1σ )

ppm

20

20

20

100

Misalignment

°

±0.05

±0.05

±0.05

±0.05

3 dB Bandwidth

Hz

250

200

150

250

1.1.2 Accelerometer Technical Indicators

Parameter

Unit

IMU6-1y-1

IMU6-1y-2

IMU6-1y-3

IMU6-1y-4

Measuring range (customizable)

g

±10

±30

±50

±80

In-Run Bias Stability (Allan Variance @ 25 ℃)

mg

0.02

0.05

0.1

0.2

Bias stability @10s

mg

0.05

0.2

0.5

1

Bias stability in full temperature

mg

1

3

5

15

Angular Random Walk

m/s/√h

0.001

0.002

0.005

0.01

Bias repeatability(1σ )

mg

0.1

0.5

1

2

Scale Factor Repeatability (1σ )

ppm

200

200

200

200

Scale Factor Non-Linearity(1σ )

ppm

50

100

200

300

Misalignment

°

±0.05

±0.05

±0.05

±0.05

3 dB Bandwidth

Hz

100

100

100

100

1.1.3 Tilt Angle Specification (not Configured by Default, Optional)

Parameter

Unit

IMU6-1y-x

Measuring range (customizable)

g

±1.7

Bias stability (1s smoothing)

mg

0.5

Random walk

m/s/√h

0.08

Scale factor non-linearity

ppm

100

1.1.4 Electrical Characteristics

Parameter

Unit

IMU6-1y-x

Voltage

V

5

Power consumption

W

2

Ripple

mV

100

1.1.5 Environmental Adaptability

Parameter

Unit

IMU6-1y-x

Operating temperature

℃

-45~85

Storage temperature

℃

-55~105

Vibration

--

10~2000Hz,6.06g

Impact

--

1000g,0.1ms

1.1.6 Other

Parameter

Unit

IMU6-1y-x

Weight

g

55±5

MEMS IMU is a fully integrated system combining gyroscope, accelerometer, inclinometer, temperature sensor, and processing electronics. It provides real-time 3-axis angular rate, acceleration, and inclination measurements with error compensation. Compact and lightweight, it outputs data through RS-422 for easy integration. Suitable for aerospace, defense, and autonomous vehicle navigation, this IMU serves as a direct replacement for STIM300, delivering reliable, stable performance under harsh conditions.

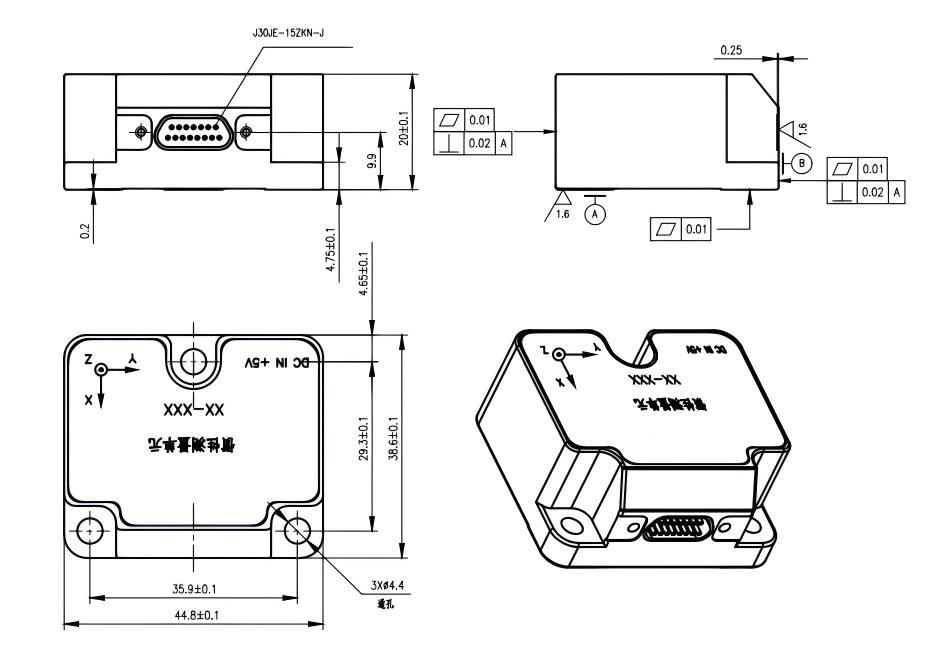

outline drawingLow-Noise MEMS IMU for Drone Manufacturer
